Custom Project Cases
The real projects we've completed. Contact us if you have similar demand.

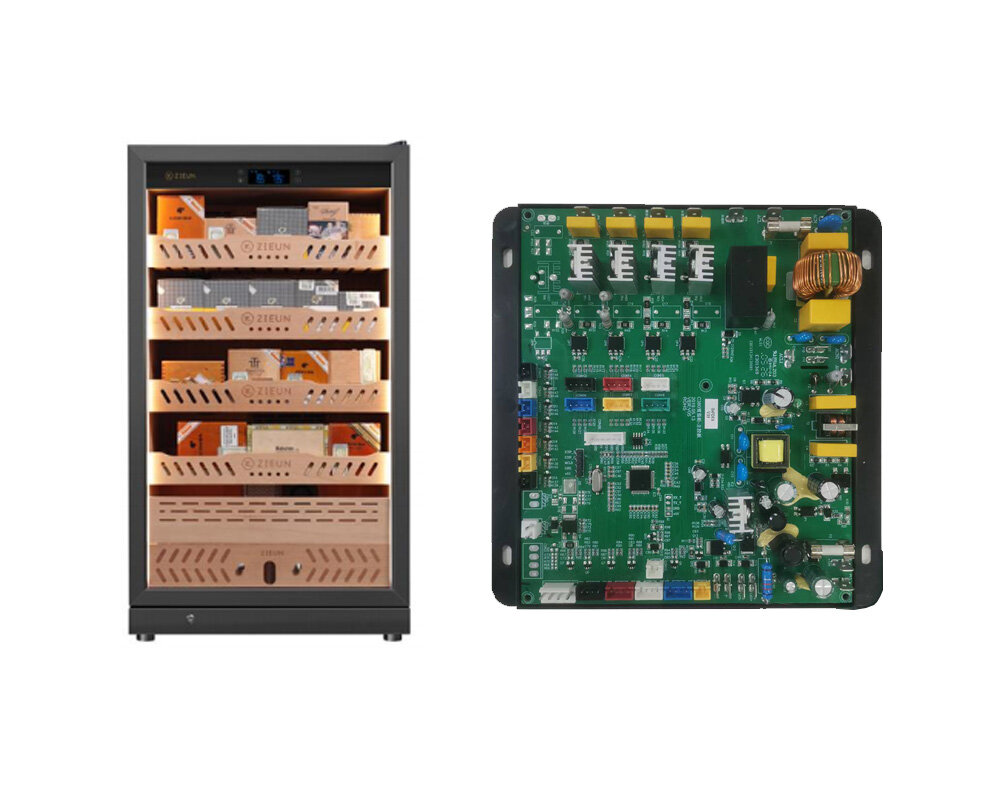

Smart Temperture and Humidity control for Cigar Cabinet
Client: Cigar Cabinet
This digital controller is specially customized for cigar cabinets with multi-page touch operation and screen lock via admin/access passwords. It supports core functions including natural aging, cigar revival, ammonia purification and adjustable lighting modes, all synchronizable to WeChat Mini Program via built-in Wi-Fi & Bluetooth. Users can check real-time and historical temp/humidity curves, customize device wallpapers and manage access passwords/fingerprints. Equipped with full debug data display and component test mode, it monitors compressor, humidifier pump and water level in real time, with ℃/℉ switchable display and auto screen lock for safe daily cigar storage management.

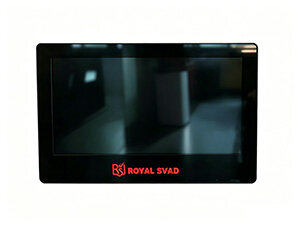

7 inch RF433 and RS485 Thermostat
Client: Royal Services
This product consists of a DC12V receiving sub-board and a 7-inch Type-C DC5V touch screen with built-in rechargeable lithium battery supporting 10-hour full-load runtime. They communicate bidirectionally via 32-channel RF433MHz and RS485. It features ±0.5℃ precise temperature control with adjustable setpoint 16~30℃ (default 24℃), Cooling/Heating/Auto working modes plus three fan options. It collects ambient temperature, supports engineering parameter setup and multi-alarm prompts for communication, probe fault and motor stall within -10~60℃ working and 5%~95%RH non-condensing environment.

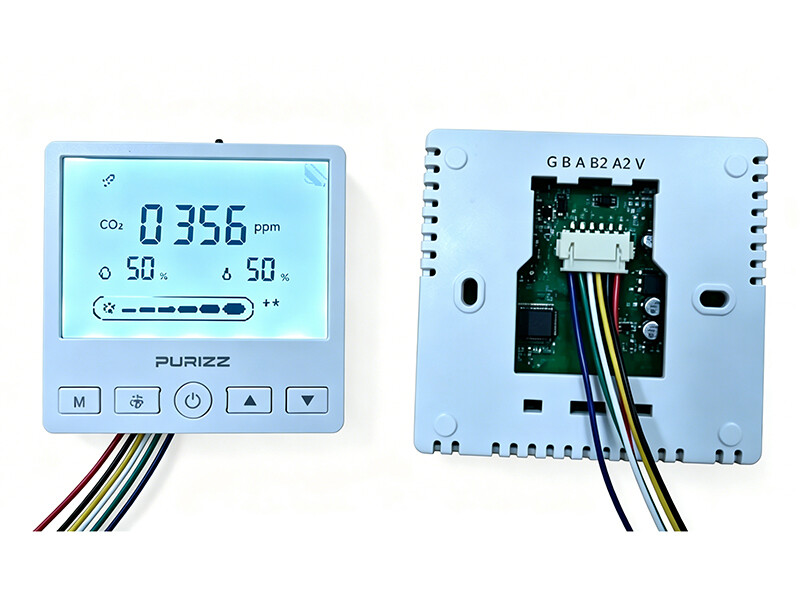

Multi-Function CO2 Ventilation Wired Controller
Client: PURIZZ
Features full-key operation: mode shift, 3-speed fan adjustment and multi-index display switching. It supports CO₂, PM2.5, VOC, temp & humidity calibration, slave address configuration and filter runtime recording. Built-in advanced parameter menu enables backlight and alarm setup, widely applied for ventilation fan linkage control.

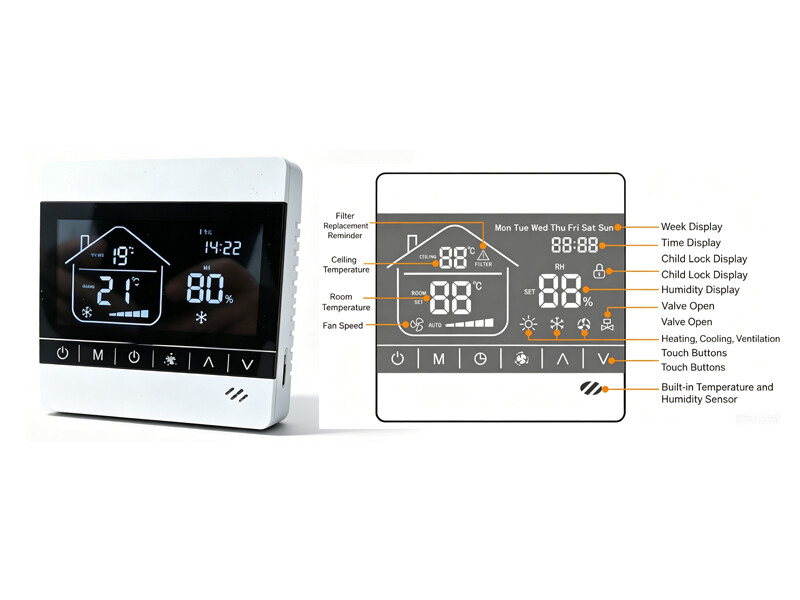

Silicon Controlled Rectifier Thermo-Humidity Controller
Client: Silicon Controlled
This SCR thermo-humidity controller adopts touch-button design to monitor ceiling & room temperature and ambient humidity in real time. It supports 5-speed + auto fan regulation, electric valve control and programmable timing switch, with auto heating/cooling/ventilation logic. Equipped with filter reminder and child lock, it enables temperature/humidity calibration, backlight and power-on setup via advanced menu. Built-in NTC sensor, rated AC220V, widely used for indoor constant temperature & humidity ventilation control.

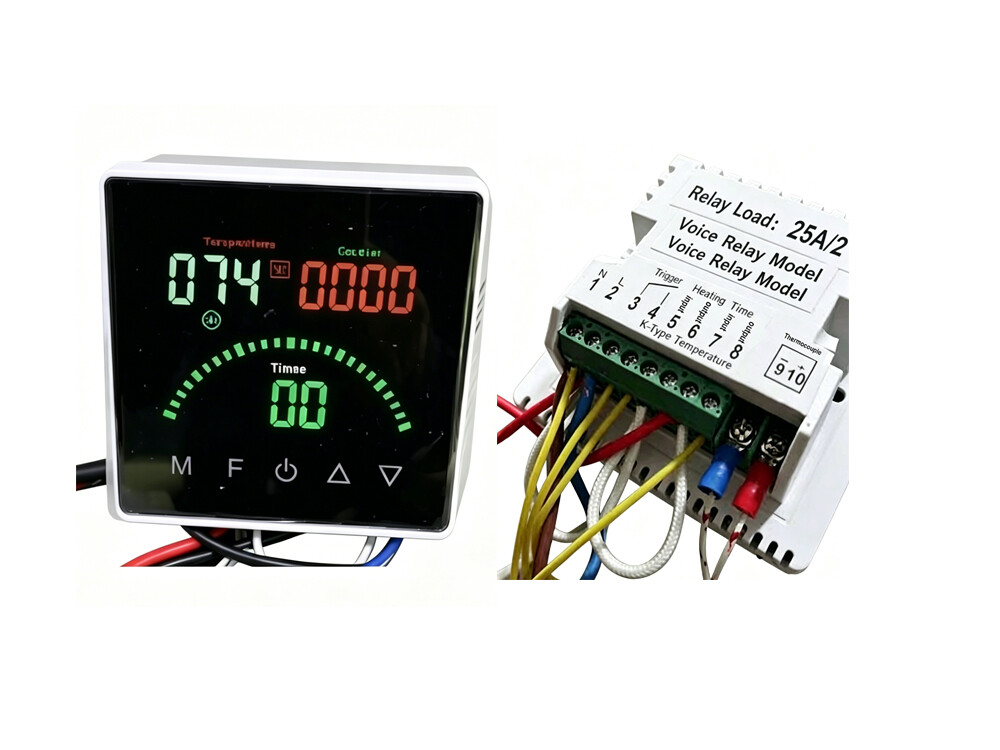

Heat Press Smart Voice Control Thermostat
Client: Heat Press
With 25A relay, PT100 sensor, temperature range 20~300 degrees
EU Electric Floor Heating Wireless Thermostat
Client: Electric Floor Heating Material Manufacturer
This EU-spec electric heating thermostat runs on two AA 1.5V batteries, with 0.1°C~1°C switch differential and selectable Summer Cooling/Winter Heating modes. It supports weekly programming with seven schedules per mode and customizable delayed startup of 15/30/45 mins or 1 hour. It reads ambient temp from 0°C to 50°C at 0.1°C resolution within ±0.5°C precision, allowing setpoint adjustment between 2°C and 50°C. Equipped with toggleable automatic daylight saving time, it works reliably at 0–50°C and 20%–90% non-condensing humidity.

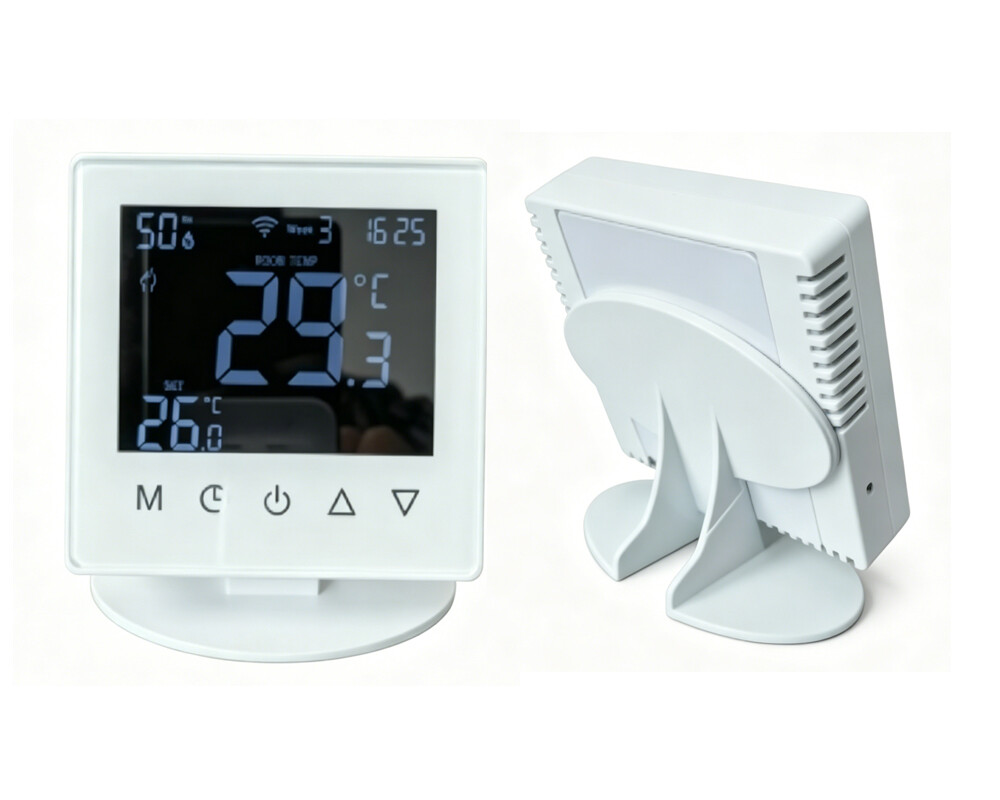

Customized Desktop Wifi Thermsotat
Client: Customized Desktop Wifi Thermsotat
Based on our model 8930, customer designed the bottom case and bracket mold and the WiFi module. Temperature sensing part: NTC thermistor Temperature control accuracy: ±0.5℃ Timing error: less than 1% Adjustable temperature setting range: 5~35℃ Temperature display range: 0~35℃ Total power consumption: below 1W Button type: capacitive touch keys Display: negative LCD screen Housing material: flame-retardant PC+ABS plastic Operating ambient: 5%~95% RH, non-condensing

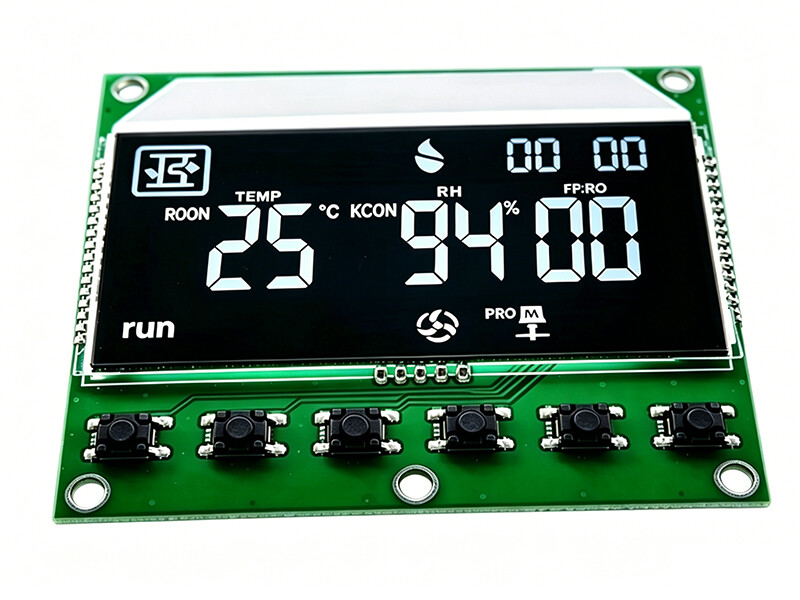

Smart Toilet Controller with LCD display
Client: Smart Toilet Control
This smart toilet control board features 6 isolated high-current relays, VA display, thermistor temp & steel-pin humidity detection. Human induction auto controls light/fan/mixer/heater with summer/winter/dehumid 3 parameter groups, cyclic motor rotation, timed heating & reserved data port.

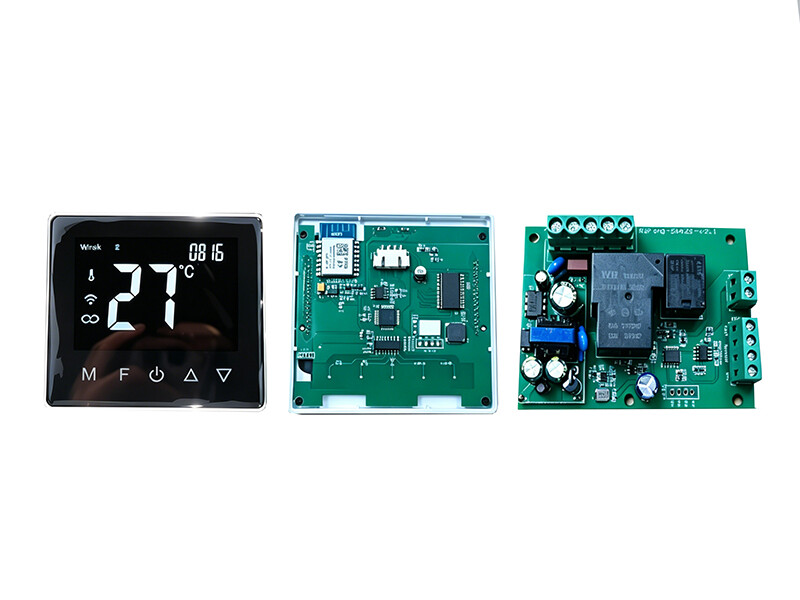

Aquarium WiFi Smart Thermostat
Client: XX Aquarium
This aquarium thermostat supports 2~50℃ temp control with ℃/℉ switch and WiFi APP remote control & timing function. Equipped with 30A(A) and10A(B) dual relays for cooling/heating modes. It features 1m waterproof external probe, 3min startup delay and cyclic B relay pause after 1hr continuous running. Parameters including temp difference, delay time and limit values are adjustable via advanced menu, with power-off memory and separated panel & mainboard connection for easy installation.
Want to See More Projects?
Our engineering team has delivered hundreds of custom thermostat solutions. Contact us to discuss your specific project requirements.
