24v-Non-programmer-Digital-Thermostat
24v Non-programmer Digital Thermostat with LCD display for single-stage cooling / heating system
24V ThermostatNon-programmable ThermostatWired Thermostat
Product Overview

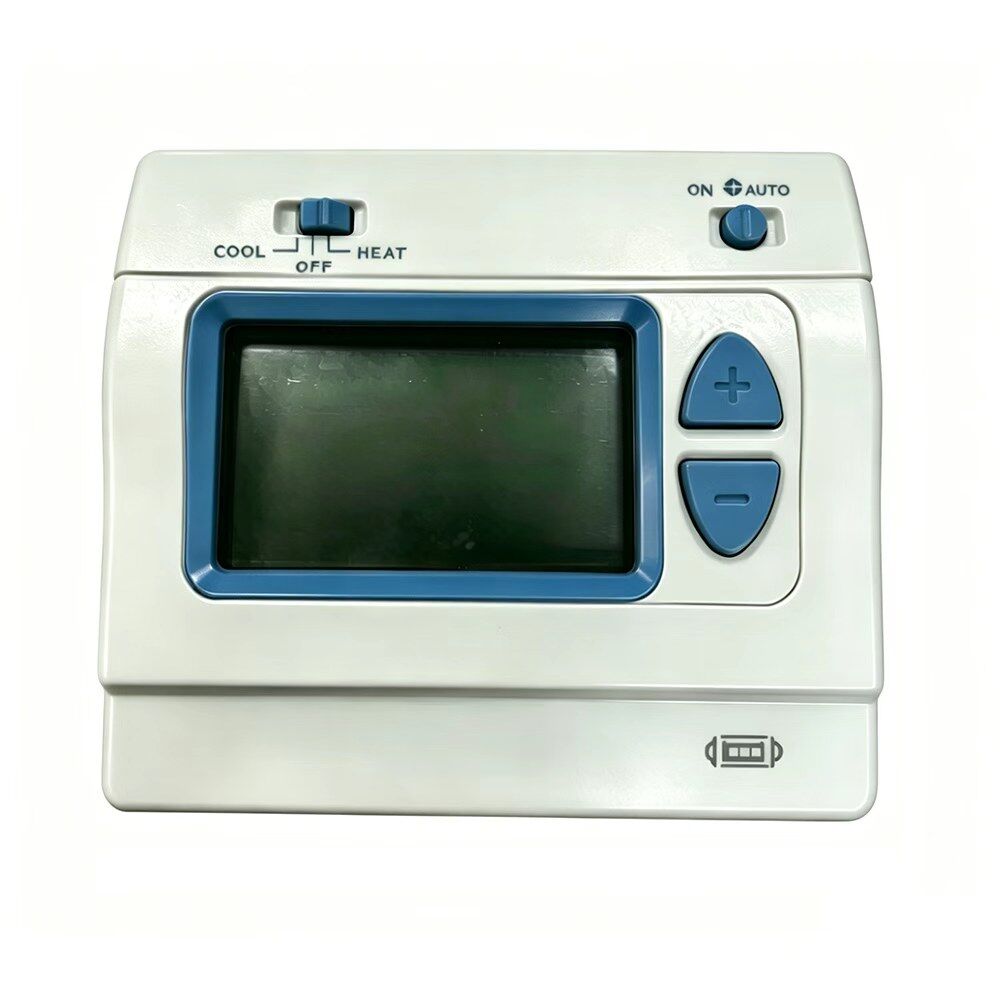

The 24v Non-programmer Digital Thermostat XGF24 is a digital, mercury-free,non-programmer, electronic thermostat Compatible with single-stage heating systems, heating/cooling systems;This 24v Non-programmer Digital Thermostat works on electric systemSystem Customization: Choose Fahrenheit or Celsius display;Three available temperature differential settings.
Key Features
- ✓Non‑programmable digital electronic thermostat, mercury‑free;
- ✓Supports single‑stage heating/cooling, gas/oil/electric/hydronic/millivolt systems;
- ✓Dual power supply: 2×AA batteries or hardwire (millivolt to 30 VAC/DC);
- ✓Temperature range: 12–32°C (54–90°F), accuracy ±0.5°C (±1°F);
- ✓Adjustable temperature differential: ±0.5–2.5°C (±4°F);
- ✓Configurable °C/°F display & permanent memory settings
Technical Specifications
| Input | · Voltage:Millivolt to 30 VAC/DC DC Power:3 volts (2 "AA" alkaline batteries not included) |
| Output | Maximum:1 amp per terminal (3 amp total for all terminals) |
| Temperature control ranges | 54°F to 90°F (12°C to 32°C) Accuracy:+ 1°F ( 0.5°C) |
| Differential range | -4°F to 4°F (0.5°C to 2.5°C) |

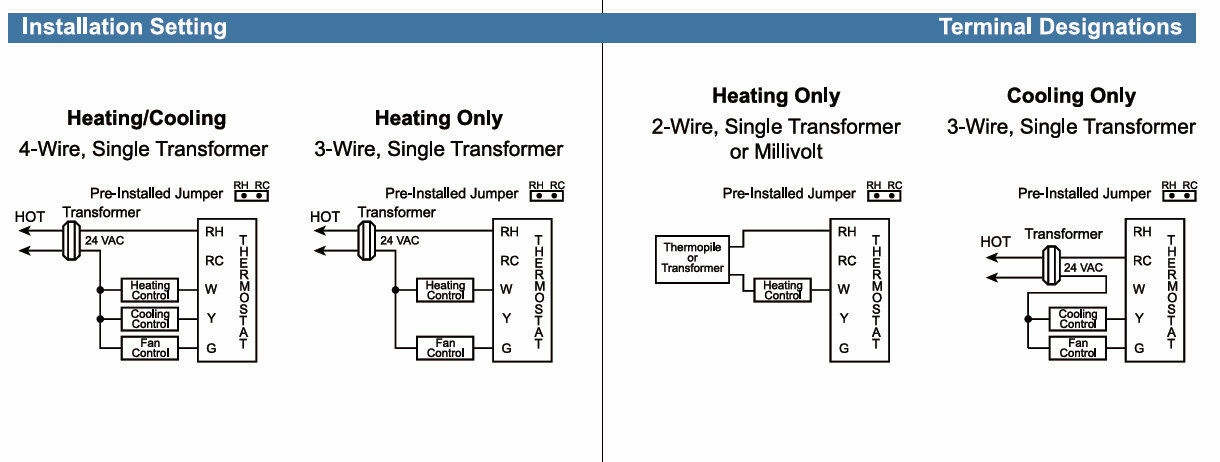

| System configurations | Single-stage heat, single-stagecool, gas, oil, or electric· |

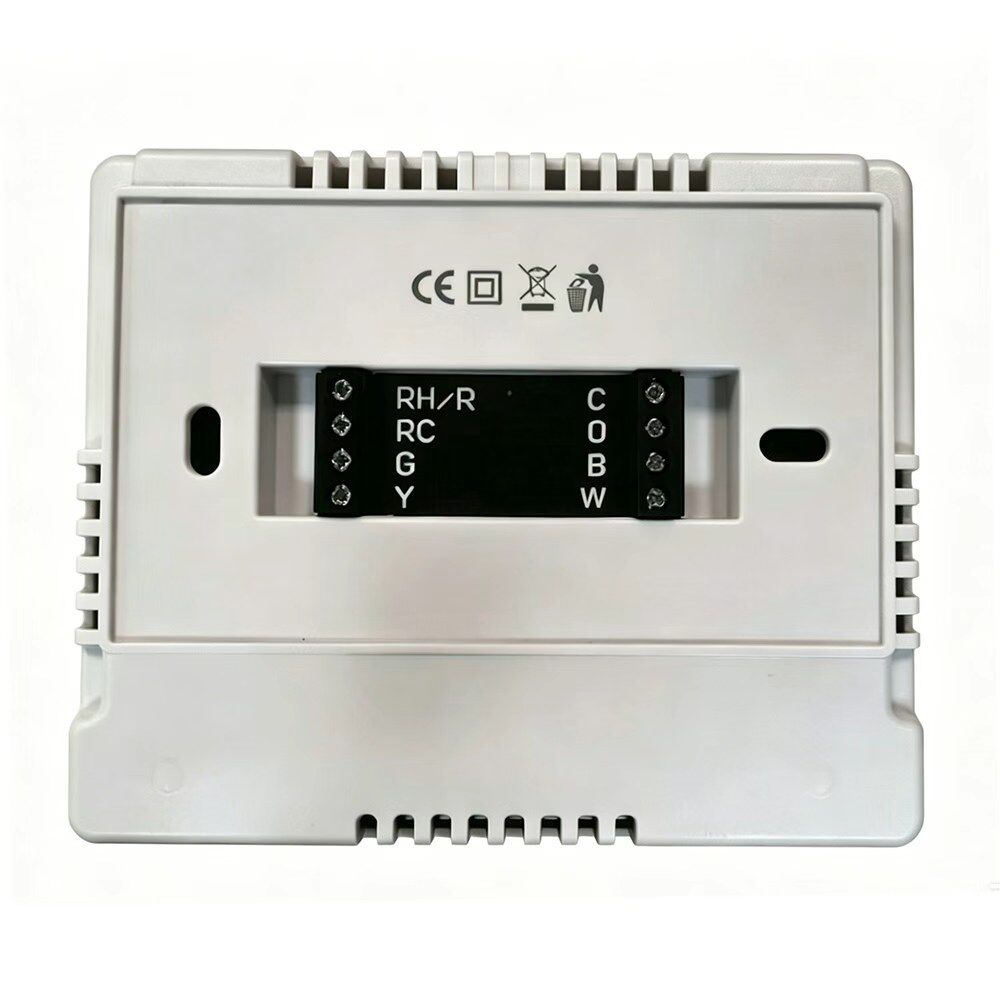

| Terminations | RC, RH, W, Y, G |
Applications
📍Home energy-saving; Hotel temperature control ; hospital temperature control
