Industrial-Metal-Floor-Fan-Lithium-battery

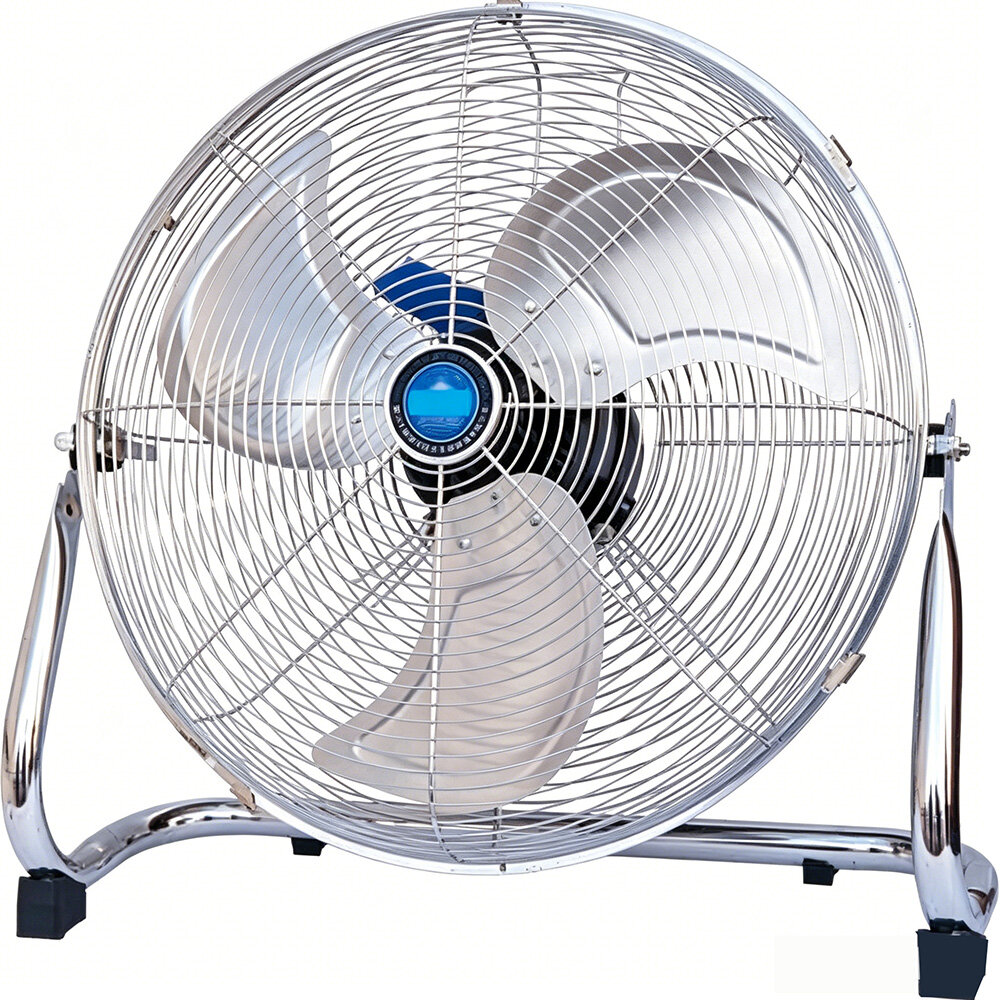

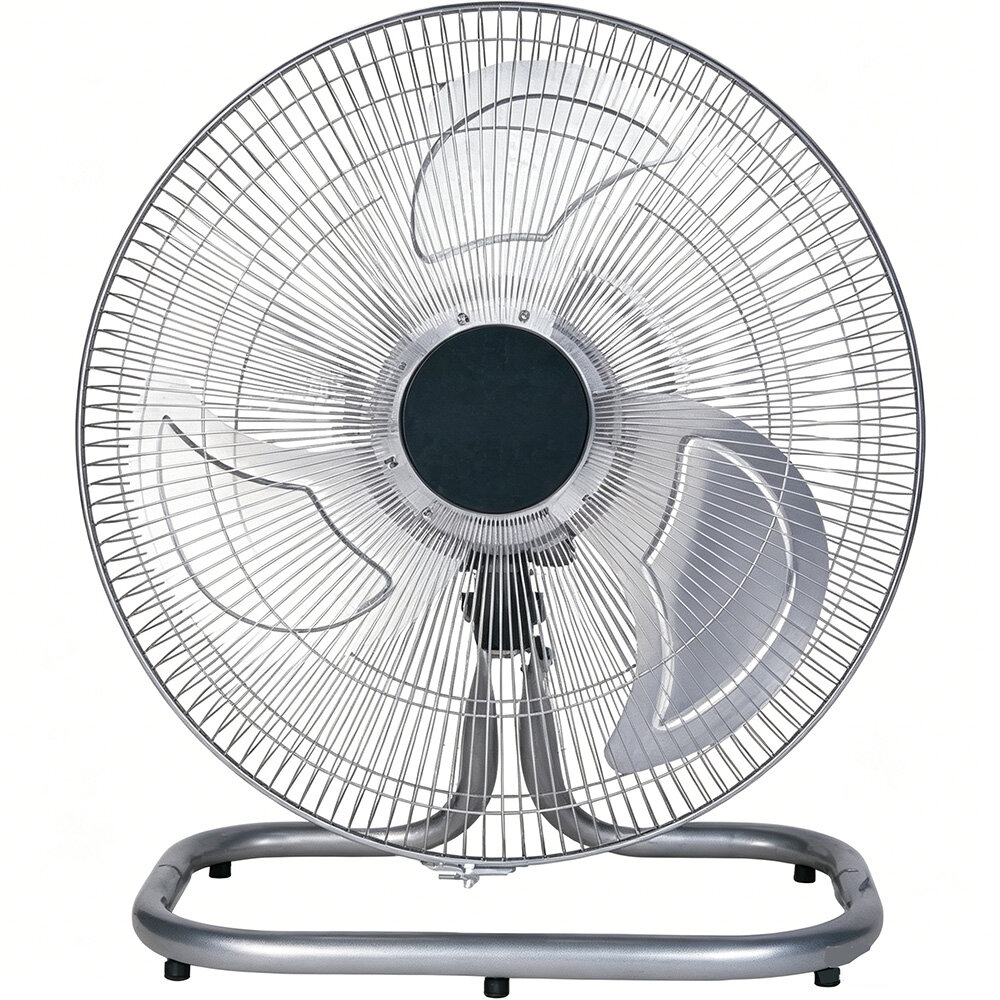

Industrial Metal Floor Fan Lithium battery Low Noise High Airflow Floor Standing Fan for Ventilation
Product Overview
Our Industrial Metal Floor Fan is Lithium battery powered and no AC power is needed, available from 12 to 20 inches, featuring low noise and large airflow, built-in overheat protection ensures motor safety with easy operation. Multiple power & size options fit factory, warehouse and household ventilation needs, with standardized installation dimensions for convenient bulk procurement.
Specification Items | 4'' D100EC | 6'' D150EC | 8'' D200EC | 10'' D250EC | 12'' D315EC |
Air Volume | 198/168 m³/h | 420/378 m³/h | 630/576 m³/h | 1152/906 m³/h | 1818/1542 m³/h |
Noise Level | 30/25 dB | 35/30 dB | 55/50 dB | 60/54 dB | 66/61 dB |
Static Pressure | 130–180 Pa | 250–300 Pa | 280–350 Pa | 400–550 Pa | 500–700 Pa |
Rated Power | 28/25 W | 50/40 W | 70/60 W | 170/130 W | 320/230 W |
Inlet Diameter | Φ100 mm | Φ150 mm | Φ200 mm | Φ250 mm | Φ315 mm |
Overall Dimension | 300×214×182 mm | 293×237×211 mm | 304×258×235 mm | 383×298×291 mm | 413×364×359 mm |
Net Weight | 1.8 Kg | 2.2 Kg | 3.1 Kg | 7.0 Kg | 9.7 Kg |
Key Features
- ✓Full metal construction with elegant compact appearance
- ✓CB & S-MARK certified to meet global market standards
- ✓Low noise operation paired with powerful high airflow output
- ✓Built-in motor overheat protection for enhanced safety
- ✓Simple mechanical control panel for easy operation
- ✓Multiple sizes (12/14/16/18/20 inch) for flexible selection
- ✓Stable floor-mounted structure suitable for industrial & domestic scenarios
- ✓Fixed standard mounting dimensions for quick installation
Product Documentation
Download Product Manual (PDF)Interested in this product?
