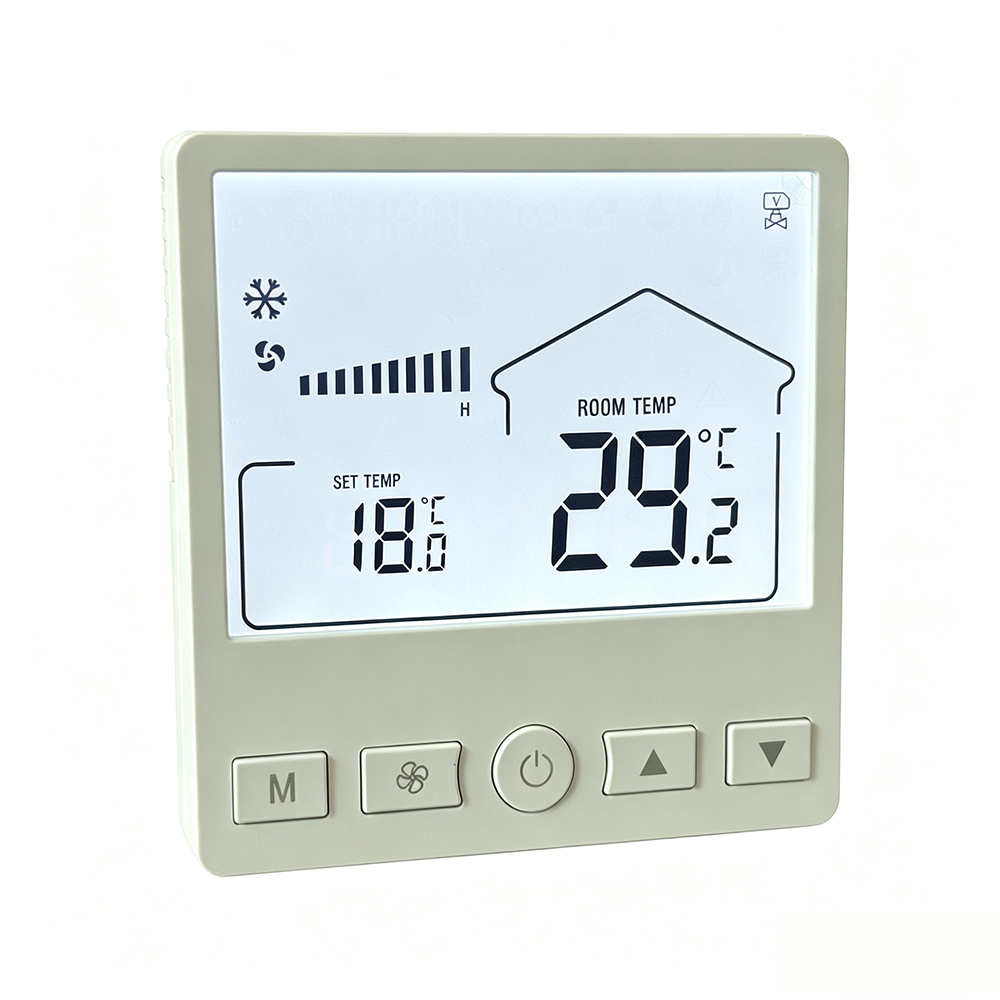

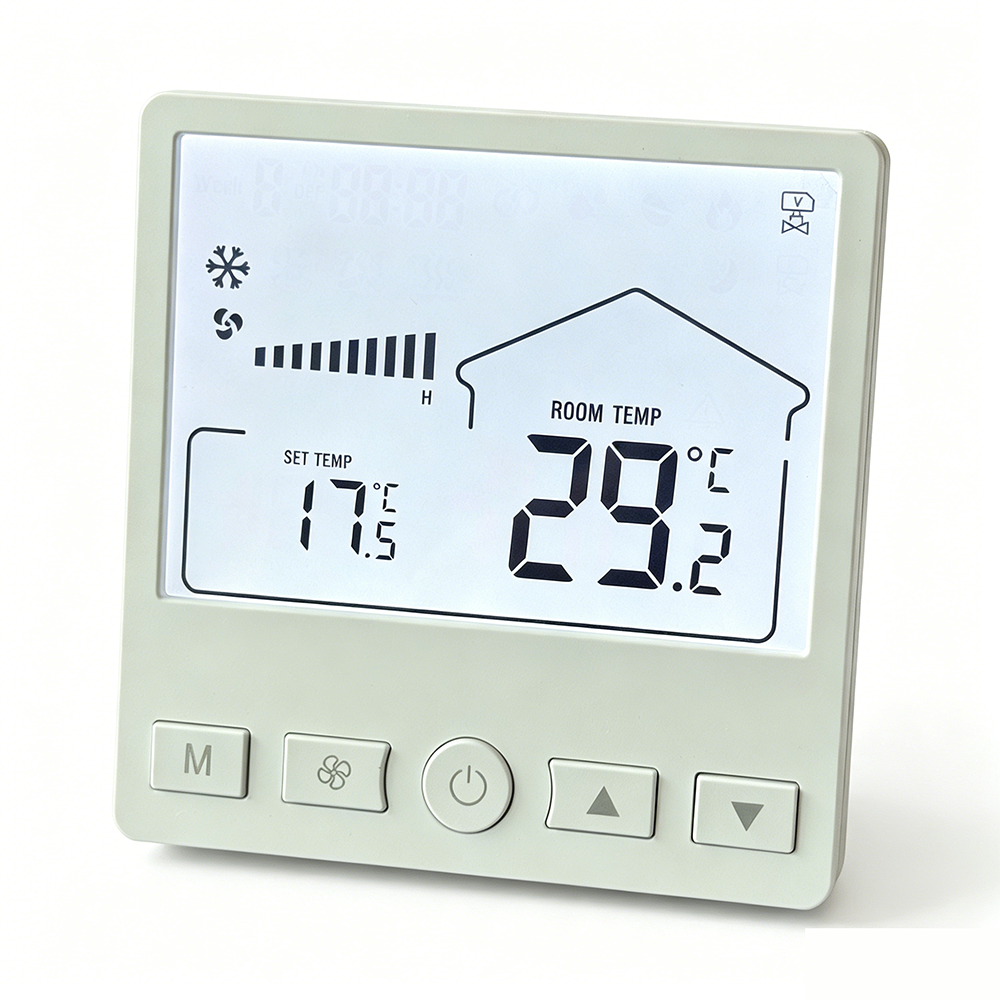

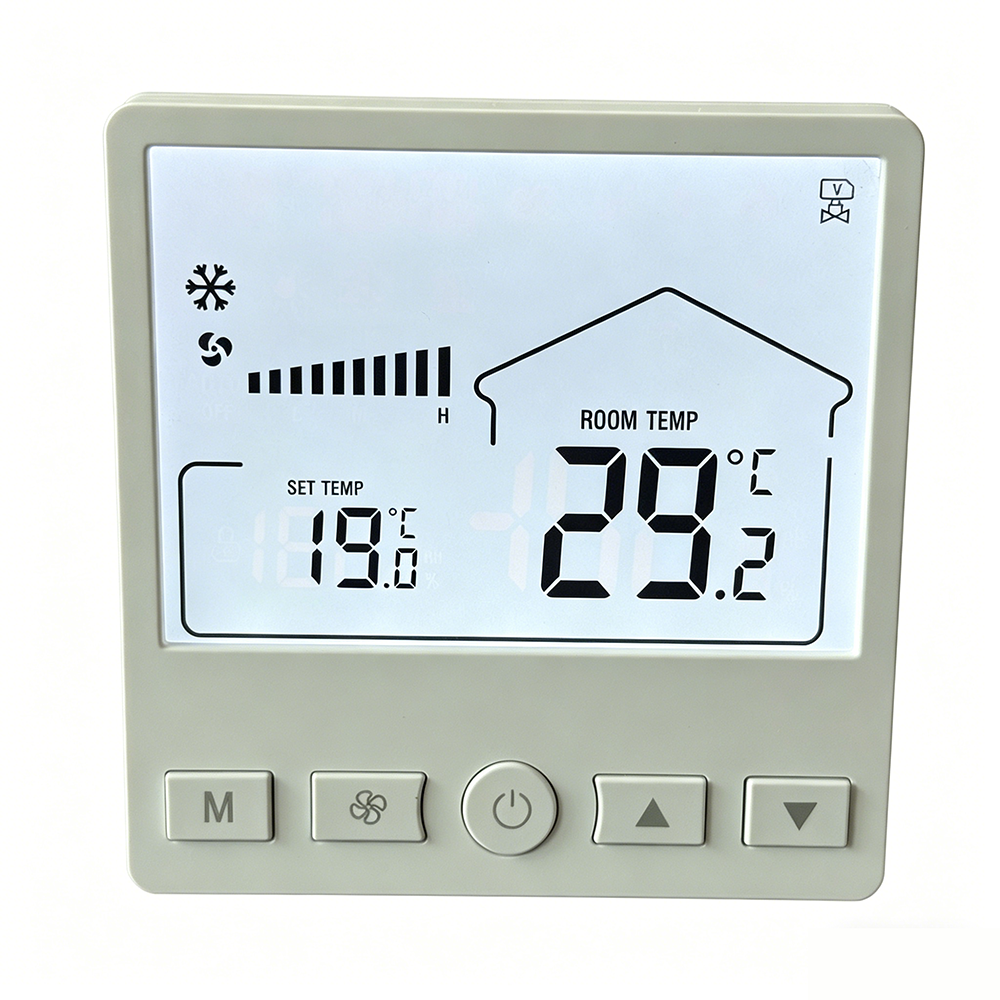

Product Overview

This is a RS-485 Smart WiFi Fan Coil Unit Thermostat with WiFi and smart control. It supports cooling, heating, ventilation and floor heating modes, featuring high-precision temperature control, LCD display, child lock, timer and 485 communication. This RS-485 Smart WiFi Fan Coil Unit Thermostat is compatible with Tuya APP, Alexa and Google Assistant, it enables mobile and voice control for intelligent and energy-saving temperature management in homes, hotels and offices.

Key Features

✓Tri-mode operation: cooling, heating & ventilation for versatile use
✓Built-in WiFi & RS-485 communication for remote & centralized control
✓Compatible with Tuya, Alexa, Google Assistant for voice control
✓High-precision NTC temperature sensing with ±1℃ control accuracy
✓Child lock, timing, auto fan speed and multiple safety protections

Technical Specifications

Temperature sensor	NTC
thermistor control accuracy	1℃
Temperature setting	05 ~ 35℃
Display range	0 ~ 50°C
Working environment	0 ~45°C
Display	LCD
Humidity	5~ 95% RH (no condensation)
Power supply voltage	AC 180 260 V,50/60 Hz
Power consumption	< 1W
Load power	3A K 200W, 10A < 1000W.
Terminal	21. 5mm or 12. 5mm conductor.
Shell	PC+ABS flame retardant

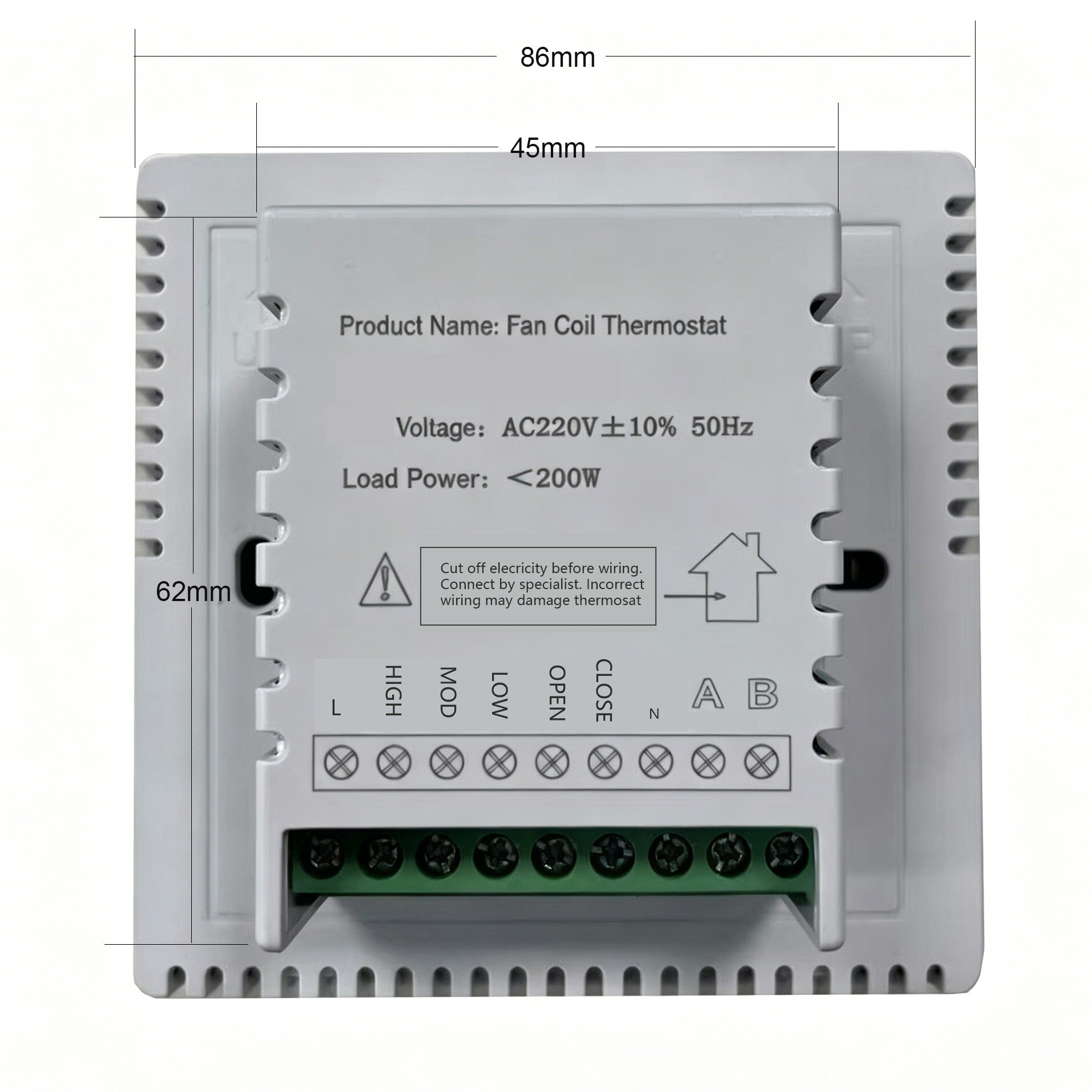

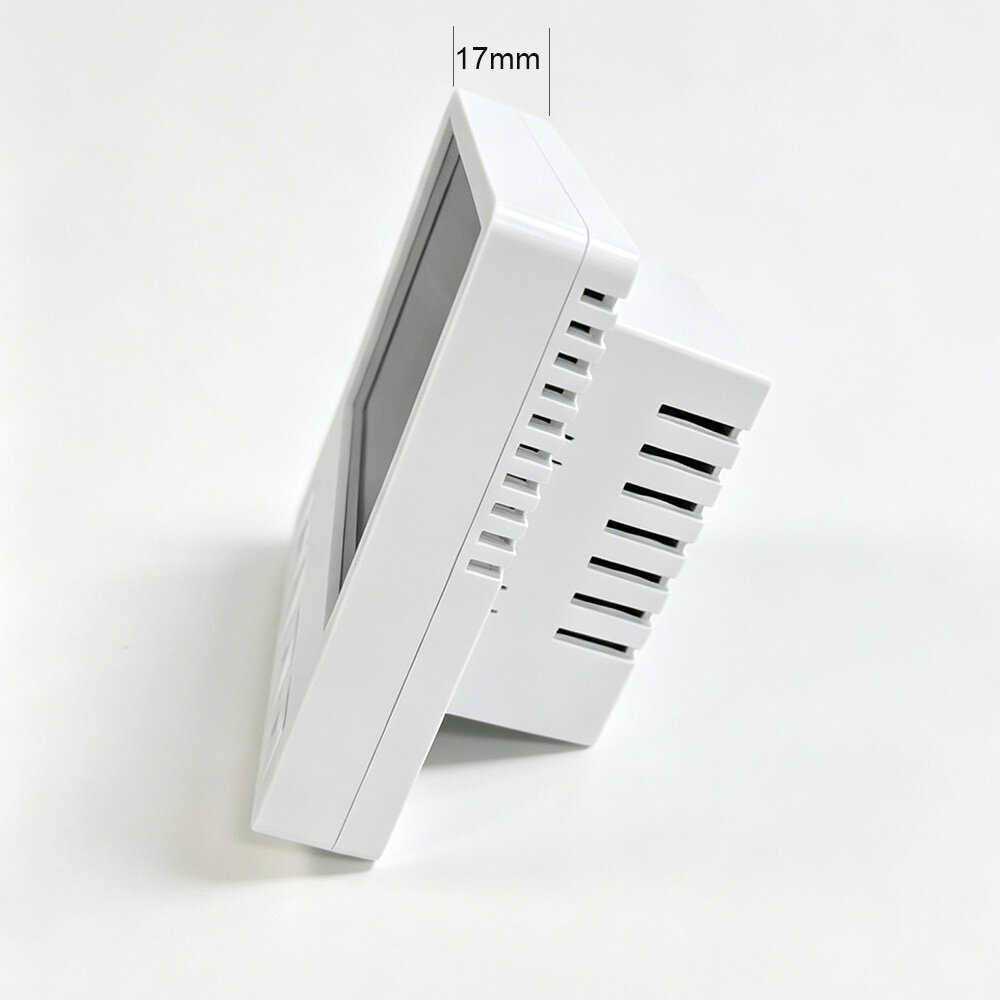

Overall dimensions	868617mm (width * height* thickness)
Installation hole spacing	60mm (standard)

Product Documentation

Download Product Manual (PDF)
