Smart-RF433-WiFi-Thermostat-for-Home-heating

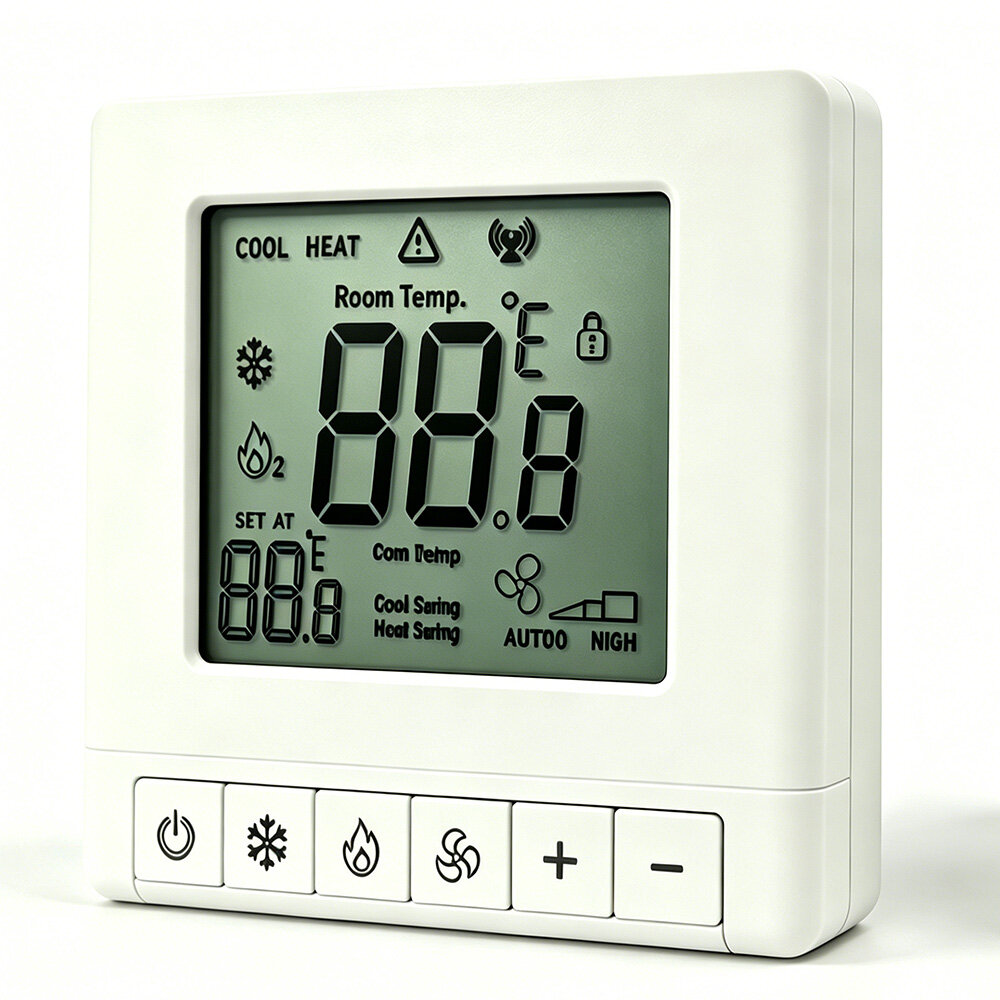

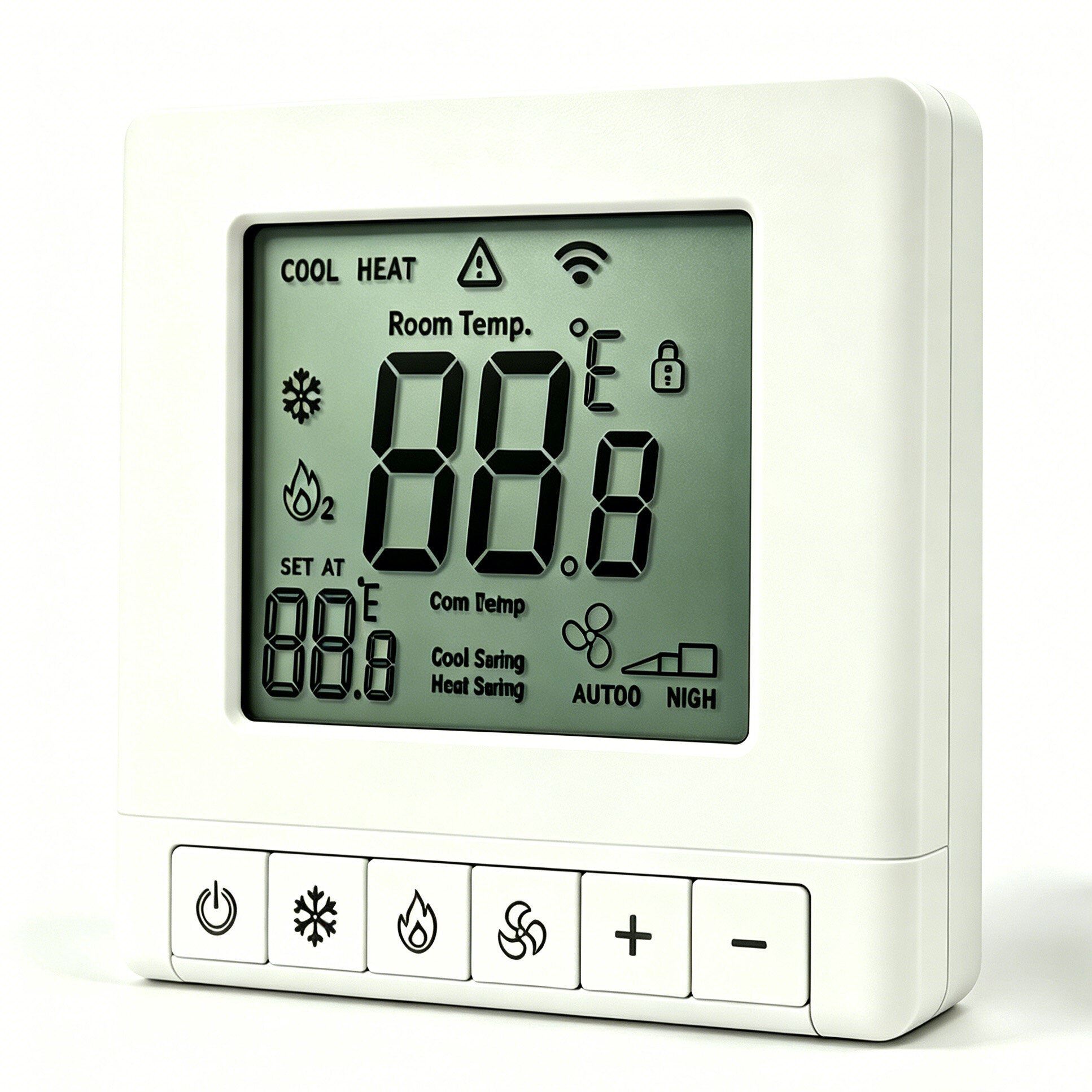

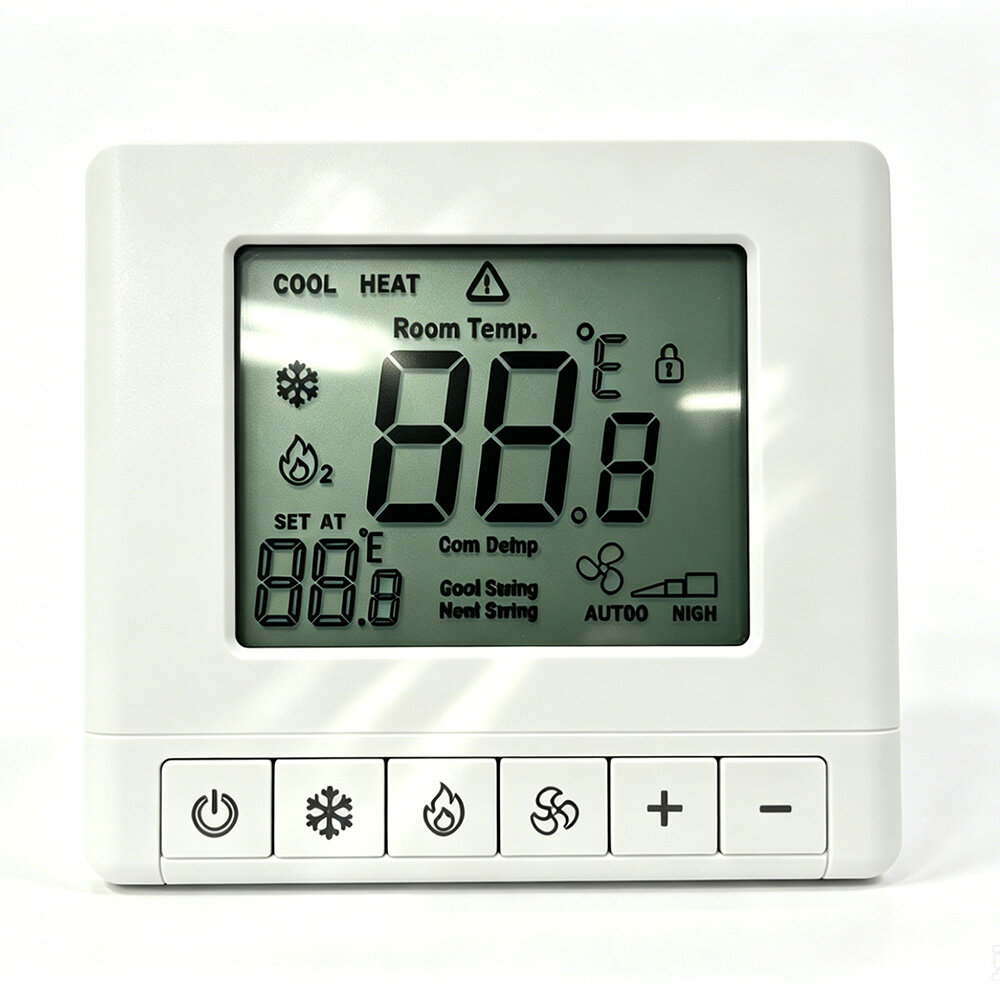

Smart RF433 WiFi Thermostat for Home heating– Programmable Heating Cooling Remote Control Temperature Controller for North American HVAC Systems
Product Overview
This RF433 smart thermostat delivers reliable wireless temperature control for home heating and cooling systems. It supports remote APP control, programmable schedules, and wide compatibility with gas/oil furnaces, electric heaters, and heat pumps. Featuring clear LCD display, child lock, temperature calibration, and compressor delay protection, it ensures stable, energy-efficient home climate management with simple setup and safe operation.
Product Overview
The Smart RF433 WiFi Thermostat combines wireless convenience with precise temperature control for North American HVAC systems. With both WiFi app control and RF433 wireless pairing capabilities, this thermostat offers flexible installation and remote management options.
Key Features
- WiFi and RF433 dual wireless connectivity
- Large LCD display with clear temperature readout
- Programmable scheduling for energy savings
- Wide HVAC system compatibility
- Safety features: child lock, compressor delay protection
- Temperature calibration for accuracy
Easy Installation
Standard thermostat wire (18-22 AWG) connection with clearly labeled terminals. Compatible with most single-stage heating and cooling systems.
Key Features
- ✓WiFi & RF433 Wireless Control
- ✓Programmable Scheduling
- ✓Wide HVAC Compatibility
- ✓LCD Display
- ✓Child Lock Function
- ✓Temperature Calibration
- ✓Compressor Delay Protection
- ✓Easy Installation
Technical Specifications
| Power Supply | Hardwire 30 VAC, 50/60Hz (Class II circuits per NEC) |
| Temperature Display Range | 32–99°F (1–40°C) |
| Control Range | 44–90°F (7–32°C) |
| Connectivity | RF 433MHz wireless pairing, WiFi app control |
| Swing Setting | Heating & Cooling 0.2–2.0°F adjustable |
| Compressor Delay | 5-minute short-cycle protection |
| Wire Spec | 18–22 AWG thermostat wire |
| Dimensions | 120.4 × 111.72 × 28 mm |

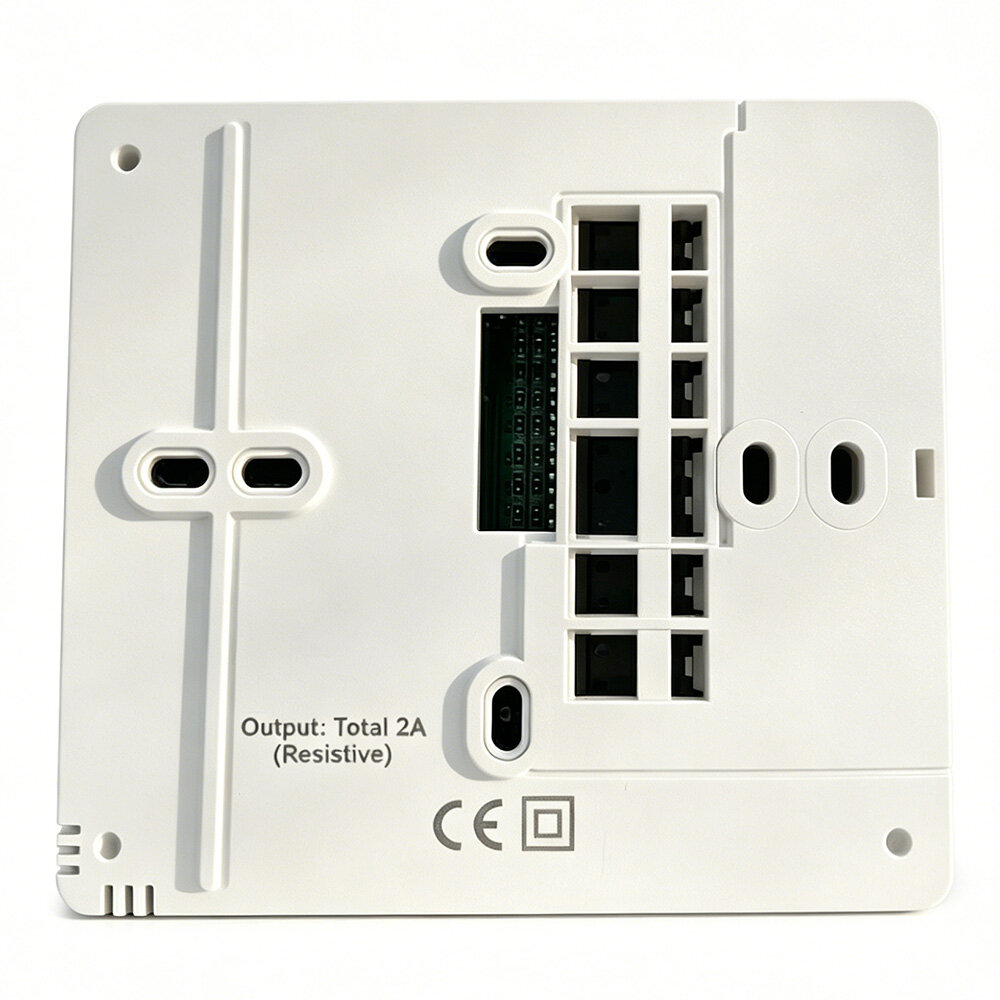

| Output | Total 2A (Resistive) |
| Certifications | CE, RoHS |
Applications
