Smart-WIFI-Thermostat-for-air-conditioning-system
86-type Smart WIFI Thermostat for air conditioning system, 3-speed AC FCU Temperature Controller
Central AC ThermostatsWIFI Smart Thermostat
Product Overview
The 8971 series room thermostat is suitable for temperature control, control in homes, office buildings, office buildings, schools and other places Ordinary three-speed AC fan coil unit and electric valve, heating and cooling functions can be selected by pressing buttons. The 8971 series indoor thermostat adopts microcomputer control technology, LED display, and the LED display status includes: working state (cooling, heating), fan wind speed, indoor temperature, setting temperature, etc.
Key Features
- ✓Room temperature setting
- ✓Manual or automatic control of the three-speed conversion of the fan
- ✓Low temperature protection function
- ✓Power-down memory function (optional)
- ✓Infrared remote control (optional)
- ✓LED display
Technical Specifications
| Temperature sensing element | NTC |
| Temperature control accuracy | ±0.5℃ |
| Temperature setting | 5～35℃ |
| Display range | 0～50℃ |
| Working environment | temperature 0～45℃ |
| Humidity | 5～95% RH（No condensation） |
| Keystroke | Tap the button |
| Self-consumption | < 2 W |

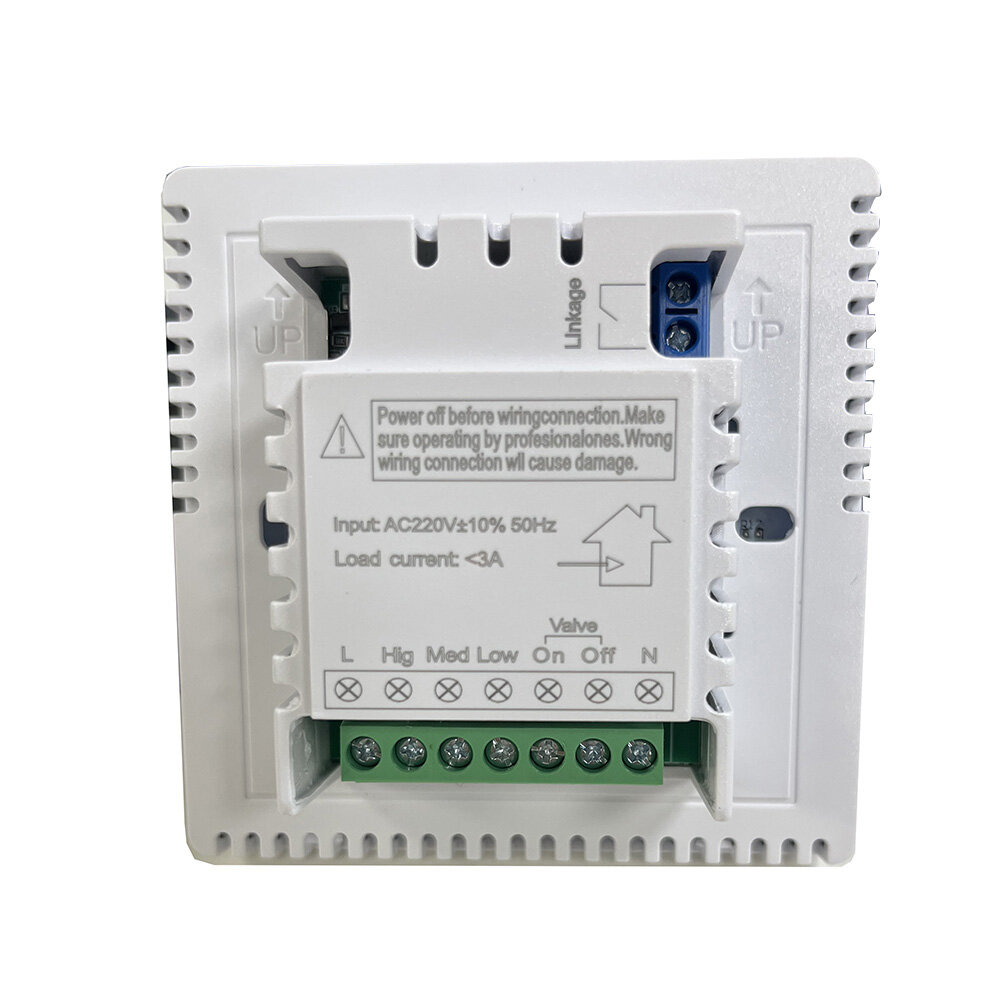

| Terminal Block | Capable of connecting 2×1.5 mm2 or 1×2.5mm2 wire |
| Supply voltage | AC220V,±10% 50/60HZ |
| Load current | 2 A（Resistive loads），1 A（Inductive loads） |
| Outer shell | PC＋ABS (Flame retardant ) |
| Dimensions | 86×86×10 mm |
| Mounting hole spacing | 60 mm（standard） |
