8969 4-inch TFT color screen fan coil mart thermostat for Aircon w/ WIFI APP control

Central AC ThermostatsFloor Heating ThermostatsWIFI Smart ThermostatColor-screen Thermostat

Product Overview

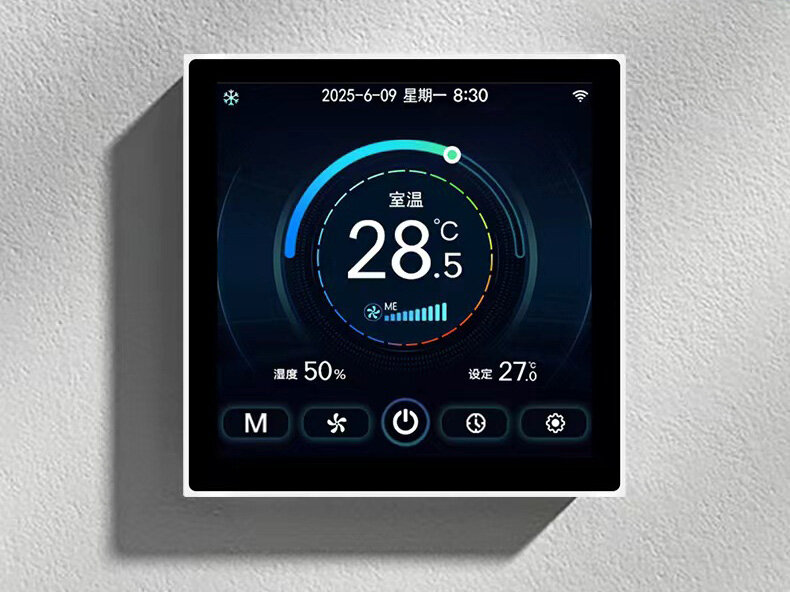

This is a 4-inch TFT color screen fan coil smart thermostat for central air conditioning systems. It adopts high-precision temperature & humidity sensing with ±0.5℃ control accuracy, and supports cooling, heating, ventilation, timing, auto fan speed and child lock. With WiFi function, TFT color display, time/weather/notification interface, PC+ABS flame-retardant shell and standard 86-type installation, it is intelligent, safe and ideal for home and commercial HVAC control.

Key Features

✓4-inch TFT color screen with clear & rich UI display
✓High-precision temperature & humidity sensor with ±0.5℃ accuracy
✓Supports cooling, heating and ventilation working modes
✓4-speed fan control (low/medium/high/auto)
✓Timing on/off function with weekly schedule setting
✓WiFi connectivity for intelligent remote control
✓Multi-function menu: temperature/humidity compensation, child lock, password setting
✓Standby screen saver with time, weather and message reminder
✓PC+ABS flame-retardant shell for safe and reliable use
✓Standard 86mm wall-mounted design, easy installation & wiring

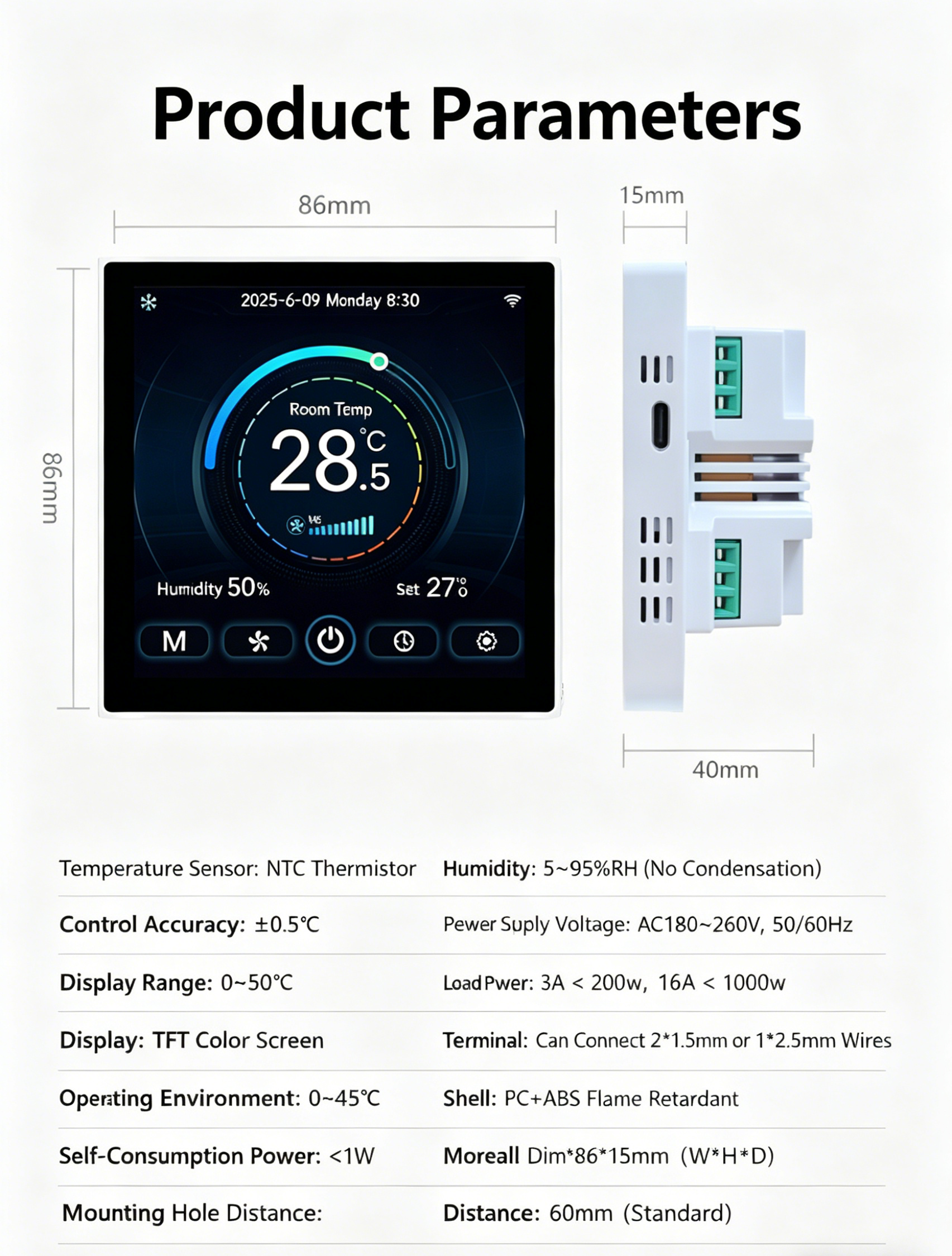

Technical Specifications

Sensor	Temperature & humidity chip
Control Accuracy	±0.5℃
Temperature Setting Range	5℃ ~ 35℃
Display Range	0℃ ~ 50℃
Power Supply	AC 180~260V, 50/60Hz
Power Consumption	< 1W
Load Power	3A < 200W; 10A < 1000W
Working Environment	0~45℃, 5~95% RH (non-condensing)
Wiring Terminal	2×1.5mm² or 1×2.5mm² cable
Housing	PC + ABS flame retardant
Display	4-inch TFT color screen
Product Dimensions	86×86×11.5 mm
Mounting Hole Distance	60 mm (standard)
